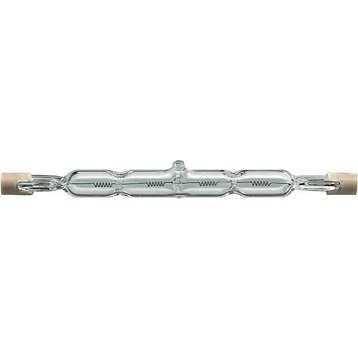

Spesifikasi Lampu Philips Plusline R7s 200W
Lampu Hemat Energi
General Characteristics
| Cap-Base | R7s |
| Bulb | T4 [T4: .434 inch / 11mm] |
| Bulb Finish | Clear |
| Operating Position | any [Any or Universal (U)] |
| Life to 50% failures | 2000 hr |
| Nominal Lifetime | 2000 hr |
| Rated Lifetime (hours) | 2000 hr |
| Rated Lifetime (years) | 2 an |
Light Technical Characteristics
| Color Rendering Index | 100 Ra8 |
| Color Temperature | 2900 K |
| Color Temperature Technical | 2900 K |
| Luminous flux lamp | 3520 Lm |
| Luminous Efficacy Lamp | 17.6 Lm/W |
Electrical Characteristics
| Lamp Wattage | 200 W |
| Lamp Wattage Technical | 200.0 W |
| Voltage | 230 V |
| Lamp Current | 0.87 A |
| Dimmable | Yes |
| Starting Time | 0.0 s |
Environmental Characteristics
| Energy Efficiency Label (EEL) | D |
Luminaire Design Requirements
| Pinch Temperature | 350 (max) C |
| Bulb Temperature | 900 (max) C |
Product Dimensions
| Insertion Length B | 112.6 (min), 114.2 (nom), 115.8 (max) mm |
| Overall Length C | 118 (max) mm |
| Diameter D | 12 (max) mm |
Product Data
| Order code | 923931743241 |
| Full product code | 923931743241 |
| Full product name | Plusline Small 200W R7s 230V 1BB |
| Order product name | Plusline S 200W R7s 230V 1BB/10X10BOX |
| Pieces per pack | 1 |
| Packing configuration | 10X10CC |
| Packs per outerbox | 100 |
| Bar code on pack - EAN1 | 8711500494375 |
| Bar code on intermediate packing - EAN2 | 8711500501837 |
| Bar code on outerbox - EAN3 | 8711500509031 |
| Logistic code(s) - 12NC | 923931743241 |
| ILCOS code | HDG//RS-200-230-R7s-114,2 |
| Net weight per piece | 9.000 gr |
Installation diagrams
Plusline Small 200W R7s 230V 1BB+ Zoom
R7s+ Zoom
any+ Zoom
see 2 Images
see 3 Diagrams
Leaflets
 | Leaflet | pdf 75.93 KB |
| Eco passport | pdf 120.32 KB |
| Material Safety Data Sheets | pdf 18.37 KB |
Other downloads
 | Product Images | zip |
| Product Diagrams | zip |
Untuk keterangan lebih lanjut, silahkan download PDF ini :
